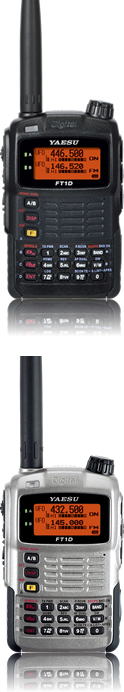

FT1DR C4FM 144/430 MHz Dual Band Digital Handheld Transceiver
The introduction of our FT1DR 12.5 kHz C4FM/FDMA 144/430MHz Dual Band Digital Handheld Transceiver ushers in The Dawn of a New Digital Communications Era in Amateur Radio. Yaesu has introduced the DR-1 Digital Repeater and FTM-400DR Mobile Transceiver products to work with the FT1DR to provide efficient and large data handling capablities not currently available on the Amateur Radio bands.
The most attractive benefit of digital communication is its ability to transfer large amounts of data. The new FT1DR uses 12.5 kHz C4FM FDMA digital modulation mode to enable high speed data communication capability, reliable voice communication with strong error correction performance. C4FM FDMA provides 9.6 kbps data baud rate speed. It is significantly different from existing digital Amateur Radio and expands the opportunities for Amateur radio operators activities in the future.
The new FT1DR provides three digital modes (V/D mode, Voice FR mode, Data FR mode) and a Analog mode:
· V/D mode is Voice and Data communication in the same time frame. This mode enables the transceiver to send voice data with GPS position data and ID data in the same time frame. Also, this mode can pass the voice data with strong error correction data to stabilize the digital communication. This mode will be the basic mode of C4FM FDMA Digital HAM radio.
· Data FR mode uses the full rate of data capacity for transfering data. This mode enables you to transfer large amounts of data, text messages, images, and voice memo data with double speed in V/D mode.
· Voice FR mode uses the full rate of data capacity for voice data. This mode enables you to transfer clear, high quality voice data.
· Analog FM mode is the same as current FM mode allowing you to communicate with all VHF/UHF HAM radio operators.
The new FT1DR has very useful Automatic Mode Select function to identify and automatically select these four modes and when the radio receives a signal.
We included many additional features in the FT1DR to make it standard digital communication equipment for all Amateur Radio operators. Please see the detailed Feature descriptions below. We also recommend viewing and/or downloading the FT1DR Brochure that is available by clicking on the "Files" at the top of above this page.
Compact SizeCase: 2.4"(W) x 3.7"(H) x 1.1"(D) without knob, antenna and belt clipRugged Case with Water Protection
Weight: 9.35 Oz with FNB-101LI battery and antennaThe FT1DR has a very rugged case with a Water Protection IPX5 Rating making it PERFECT for extreme environments, field and outdoor useHigh Power and Long Life OperationYou can depend on up to 5 watts of reliable power output. There are four steps of power output, 5 watts, 2.5 watts, 1 watt and 0.1 watt. There are two types of Li-Ion battery. The optional FNB-102LI battery will provide up to 8 hours of typical 5 watt operation.Illuminated KyeboardFully illuminated keyboard that will permit easy operation in dark environmentsUser-friendly Intuitive and Easy-to-Master OperationsThe FT1DR is extremely user-friendly, with a wide range of functions that can be called up directly. An easy-to-understand hierarchical menu is also used for the setting modes that allows customization of the FT1DR and makes it convenient to use. Press the ENT key to move to a lower level of the hierarchy, press the DISP key to return to a higher level, and turn the dial to select items or set values. These simple operations can be used to adapt the FT1DR/FT1DE to many communication situationsReal Dual Band Operation (V+V/U+U/V+U)With two independent receivers, you may listen to either the same or a different band simultaneously.AF Dual ControlListen to AM or FM radio stations while monitoring two frequency channels! Two independent receivers will allow you to listen to your favorite AM or FM broadcast station, and monitor two different bands (“Band A” and “Band B”) at the same time.Four (4) Communication ModesThe FT1DR operates in one traditional analog mode and three digital modes! Enjoy communication in the mode that best suits your needs. purpose.The Automatic Mode Selection
1. V/D Mode (Simultaneous Voice/Data Communication Mode)
Half of the bandwidth is used for voice signal with error correction. The transceiver uses powerful error correction technology developed for professional communication devices. The very effective error correction code provides benefits such as minimal interruption of communication. The basic digital C4FM FDMA mode provides a good balance between sound quality and error correction.
2. Voice FR Mode (Voice Full Rate Mode)
This mode uses the entire 12.5 kHz bandwidth to transmit digital voice data. The larger voice data size allows voice communication with high sound quality. Use this mode for pleasing sound quality communication between amateur radio friends.
3. Data FR Mode (High-speed Data Communication Mode)
A high-speed data communication mode that uses the entire 12.5 kHz bandwidth for data communication. The transceiver automatically switches to this mode when sending and receiving images, allowing a large amount of data to be transmitted quickly.
4. Analog FM Mode
Analog FM is effective for communication with a weak signal that causes voices to break up in the digital modes. The analog mode allows communication even at distances where noise and weak signals make communication almost impossible. The tried-and-trusted low-power circuit design uses less battery power than the digital modes.The Automatic Mode Select function detects the receive signal modeSnapshot Picture Taking Capability
The transceiver automatically selects one of the four communication modes according to the signal received. This is extremely convenient when listening for communications, as you do not need to be aware of the other party’s communication mode. The transceiver can also be operated in a fixed communication mode.When using the handy speaker microphone camera (optional MH-85A11U), press the shutter button to capture a snapshot, then press the image transmit button to easily transmit the image data.Digital Group Monitor Function
The snapshot image or received data is stored in a high capacity micro SD card that is installed in the radio. You can recall and send that image data from the SD card anytime. The image data size is 320 x 240 dots or 160 x 120 dots. Image quality can set from 3 types, and you can choose a format that is suitable for the image and purpose.
This image data also retains a time record and the GPS location data of the snapshot. It is easy to view and edit the data file after taking the pictures by using a personal computer.
A snapshot aids in navigating and returning to the pictured location; other various uses are possible.The digital GM function automatically checks whether members registered in a group are within communication range, and displays information such as distance and direction for each call sign on the screen. This convenient function makes it possible not only to see whether any friends are in communication range, but also to instantaneously determines the location and relationship between all members of the group.Band Scope
This function can also be used to send messages and data such as images between members of a group, permitting convenient and fun communication between friends when out for a drive or hike. Sent and received messages and images can be checked on the LOG List screen, with icons making them easy to distinguish.The FT1DR includes a high resolution band-scope with about 50 channels.Wideband Receive CoverageCovers 504 kHz - 999.900 MHz (A Band), 108 MHz - 580 MHz (B Band), continuous reception for short-wave, FM/AM broadcasts, aircraft, public service channels, etc.Preset Receiver Function - NOAA Weather, Marine, ShortwavePreset Receiver Function with an Extensive Range of Major Broadcasting Stations and Various Wireless Information Services. The FT1DR has a preset receiver function with various frequencies in memories, making it easy to call up stations in the various communication services. The frequencies include short-wave broadcasts, international (marine) VHF and NOAA Weather channels.Built-in GPSIntegral GPS receiver and antenna (located on top of the radio) provides location, time, direction and APRS® information. The FT1DR has a very useful GPS data transmission capability.1200/9600bps APRS® Data CommunicationThe built-in worldwide standard AX.25 Data TNC Modem permits uncomplicated APRS® (Automatic Packet Reporting System) operation. You will be able to display the information, station list; and use the message, SmartBeaconing TM function . You will be able to track your APRS® movement on the Internet websites.Smart Navigation FunctionThis is a real-time navigation function that records the location and direction of Group Monitor (GM) stations. Digital V/D Mode communicates information such as position data at the same time as the voice signal, allowing you to view the distance and direction of the other party in real time while communicating. This makes it possible to confirm your position and the other party’s in situations such as hiking and driving where your positions are constantly changing, providing an easy way to meet up or join routes.Backtrack Function to Return to Departure PointThis function allows navigation back to the departure point, or a point previously added to the memory. When hiking or camping, just register the starting point or the position of your tent and then you can constantly check the direction and distance from your current position. The arrow of the compass display constantly shows the direction to the registered point, making it extremely convenient in finding your way back to the registered place – just move in the direction so that the arrow in the heading-up displayLots of Memory Channels and Features
points straight upward.The FT1DR includes 1266 channel memories; 24 100-channel memory banks; memory TAG up to 16 characters.ScanningWe were sure to include versatile scanning capablities for the monitoring enthusiasts!DTMF FeaturesFuctional DTMF Encode and Memory features are includedSelective Call / Pager FeaturesBuilt-in CTCSS, DCS and an all new PAGER fution encode/decode enables multiple-use selective calling features.Vibrate AlertSelect from three types of Vibrate Alert functionsData Terminal for Data CommunicationA Data terminal is located on the side of the radio. The optional camera equipped microphone (MH-85A11U) may be connected to this terminal. Your Personal Computer may also be connected to this terminal to transfer the data or update the firmware of the radioMicro SD Card SlotA micro SD card slot is provided on the side of the radio. Memory back-up, the picture image data and other useful information is stored on the high capacity micro SD card (Maximum 32GB). The GPS logger records the location and track information of your moving station, which may be shown later by using Map software on your personal computer, By using the SD card, it is also possible to clone the radio data to the other compatible radios.Accurate 24 Hour ClockThe FT1DR GPS receiver is used to provide a highly accurate 24 hour Clock for your various needs.Password LockPassword Lock function to meet you security concerns.Improved AM Broadcast ReceptionAn Internal Bar Antenna ensures better than normal AM broadcase band receptionOther Features- High-intensity White LED for Emergency Illumination
- Built-in sensor provides accurate temperature readings.
- Built in On/Off Timer
- Automatic Power Off
- Time-out Timer
- Battery saving features
Model Batteries FBA-39 BATTERY CASE
Battery Tray 3xAA Cell
Li-ion Battery Pack (1100 mAh)
DC Cable; plug and wire only
Headset with Boom Mic and PTT/VOX (replaces MH-37A4B)
Microphones CT-44 Microphone Adapter (2 conductor female mic to single jack) SSM-57A
Earbud speaker mic with PTT
Amateur Radio \ Brochures \ VHF Handhelds
FT1DR/FT1DE Brochure ( 3.21 MB )
Amateur Radio \ Manuals \ Digital
Amateur Radio Digital Standards ( 997.05 KB )
FT1DR/DE Instruction Manual (WIRES-X Edition) ( 8.74 MB )
FT1XDR/XDE Operating Manual (Including the DG-ID function information) 9/20/17 ( 24.47 MB )
FT1XDR/XDE/DR/DE Instruction Manual (GM Edition) 9/26/17 ( 2.18 MB )
FT1XDR/XDE/DR/DE Instruction Manual (WIRES-X Edition) 12/20/17 ( 8.75 MB )
Amateur Radio \ Manuals \ VHF/UHF Handhelds
FT1DE Deutsch Instruction Manual (APRS Edition) ( 6.36 MB )
FT1DE Deutsch Instruction Manual (GM Edition) ( 3.62 MB )
FT1DE French Instruction Manual (APRS Edition) ( 6.36 MB )
FT1DE French Instruction Manual (GM Edition) ( 3.45 MB )
FT1DE Italiano Instruction Manual (APRS Edition) ( 6.36 MB )
FT1DE Italiano Instruction Manual (GM Edition) ( 3.46 MB )
FT1DE Spanish Instruction Manual (APRS Edition) ( 6.36 MB )
FT1DE Spanish Instruction Manual (GM Edition) ( 3.46 MB )
FT1DR Instruction Manual (APRS Edition) ( 0.98 MB )
FT1DR Instruction Manual (GM Edition) ( 202.22 KB )
FT1DR/DE Operating Manual ( 26.29 MB )
FT1XDR/DE Operating Manual ( 23.45 MB )
Amateur Radio \ Software
ADMS-6 Programming Software with FT1XDR/XDE MAIN firmware “Ver. 13.01” or later and FT1DR/DE MAIN firmware “Ver. 3.01” or later ( 44.92 MB )
Announcement of FTM400 FT1D Firmware 10/22/14 ( 178.10 KB )
FT1DR/DE [FT1D _Firmware_Update_0908.zip] 9/8/17 ( 17.48 MB )
FT1DR/DE ADMS-6 Programming Software Ver.126.96.36.199 (4/1/16) ( 40.58 MB )
FT1DR/DE Main Firmware Update Instruction Manual (10/20/17) ( 1.79 MB )
FT1DR/DE Update Firmware Information adds the DG-ID function (Rev 2) 9/8/17 ( 43.22 KB )
FT1XDR/XDE [FT1XD_Firmware_Update_0908.zip] 9/8/17 ( 26.20 MB )
FT1XDR/XDE Main Firmware Update Instruction Manual (10/20/17) ( 7.05 MB )
FT1XDR/XDE Update Firmware Information adds the DG-ID function (Rev 3) 9/8/17 ( 43.42 KB )
SCU-18 USB Cable Driver (USB60F) ( 3.98 MB )
SCU-18 USB Driver Installation Manual ( 1.34 MB )
Why does the WIRES-X button not work with my hotpsot? Or why can I not save Wires X rooms in my radios categories area with my hotpsot? Off brand hotpsots do not use the true Fusion protocol. Hotpsots do not connect you to the WIRES-X network, they connect to what are known as YSF or FCS reflectors which are not part of the WIRES-X network.
