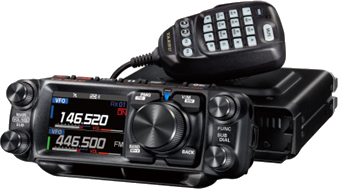

We are pleased to introduce the new FTM-500DR 50W C4FM/FM 144/430MHz Dual Band Digital Mobile Transceiver. The FTM-500DR shares the YAESU advanced core features, and utilizes the latest C4FM Digital technology. A few remarkable functions are listed below:
Front Speaker with AESS* Dual Speaker System *(AESS: Acoustic Enhanced Speaker System)
Total 9W Clear & Powerful High-fidelity Audio, delivered by the Front Panel 6W and the Main Unit Internal 3W speakers
E2O(Easy to Operate)-IV
Innovative, Smart Operating System with TOUCH&GO / SEARCH&GO / PMG** Functions.
**(PMG: Primary Memory Group Monitor)
- 144MHz, 430MHz C4FM Digital / FM / AM (Air Band Receive)
- True Dual Band Operation, C4FM/C4FM Digital D-D Dual Receive
- Advanced C4FM Digital Mode with AMS (Automatic Mode Select), DG-ID feature and Smart Navigation
- 2.4-inch High-Resolution Full-Color Touch-panel Display and Demountable Front Panel Controller
- Swing-Head adaptable Front Panel improves display visibility
- Single-Touch Spectrum Scope function
- High speed Band Scope function
- Built-in 66ch High precision GPS receiver and External GPS device connectivity
- Wireless Operation Capability with the Bluetooth® Headset - Optional Swing-head Kit (SJMK-500) allows the Flexible angle adjustment of the Front Control Panel
- Customized Function List (CFL) Display allows checking and immediately executing priority functions.
(Up to 8 functions or settings from the set-up menu can be registered.)
- MAG (Memory Auto Grouping) Function allows Memory channels to be automatically categorized in ALL, AIR band, VHF band, UHF band and OTHER.
- VFO Band Skip Function
- Memory Channel Data Transfer to the VFO Register
- Single-Touch Spectrum scope function: Instantly switches the operating screen between "Scope display operation" and "Dual Receive operation"
while in MAIN channel operation
- High speed Band Scope function
*up to 61 channels centered on the current frequency displayed in VFO mode and up to 21 channels of signal information in memory channel mode
- 1104 Memory Channels including 5 "Home" channels, 50 sets of memories for programmable memory scan and 999 "Basic" memories.
- Built-in 66ch High precision GPS receiver and External GPS device connectivity,
- 1200/9600bps APRS® Data Communication
- Wireless Operation Capability with a Bluetooth® Headset
- WiRES-X Portable Digital Node or HRI-200 Fixed Node capability
- Voice Recording of the received and transmitted audio
- 50W Stable High-Power with Heavy Duty Heat Sink and FACC (Funnel Air-Convection Conductor) *Selectable 50W / 25W / 5W
- Micro SD Card Slot (up to 32GB)Supplied Accessories:
DTMF Microphone SSM-85D
Radio unit Mounting Bracket
Control Cable for operation with adjustable front panel mountings
DC Power Cable
Operating Manual
Model Brackets CT-132 Control Head Extension Cable 20(ft) 6m
MMB-103 Dash Mount Bracket
SCU-62 Control-Head Extension Cable 10ft (3m)
SJMK-500 Swing-head Kit *Optional extension cable CT-132* is not required
Headsets SSM-BT10 Bluetooth Headset
Microphones MEK-5 Mic Extension Kit 10ft (3m) with two 6-pin modular plugs
MH-42C6J Microphone
SSM-85D DTMF Microphone
Optional Boards FVS-2 Voice Guide Unit
Power Supplies FP-1023 Power Supply (23A)
FP-1030A Power Supply (30A)
Programming SCU-58 WIRES X Connection Cable kit *Inc. PC Connection Cable and Audio Cable
Speakers MLS-100 External Speaker (12 Watt Peak)
When I boot up the WIRES-X software I see an error “not found audio device”. Why does this happen and how do I fix it?
|
