High Power Output For Exceptional Reach and Performance
- 32 Channels
- 50 Watts or 100 Watts
- VHF: 134 – 160 MHz; 148 – 174 MHz
- UHF: 400 – 430 MHz; 450 – 480 MHz
- 6 Dual-Function Programmable Keys
- FCC Narrowbanding Compliant
Can perform in repeater or base station mode depending on the application. Includes Priority Channel scanning capability for efficient communications monitoring.
Power Supply Backup With AlertShould DC power fail at the repeater site, the VXR-9000 will automatically revert to a backup DC power source if connected. Under backup DC power, the repeater will transmit an alert message to notify the operator that immediate attention is required at the repeater site.Designed For High ReliabilityThe cooling fan diameter is 3+ inches and thermostatically controlled to ensure a stable temperature environment. Fan operation may be programmed for three options: off, continuous or temperature-controlled, depending on the application. A malfunction alarm is also included.Flexible, Automatic Command Sequence ConfigurationMay be programmed to perform a five-step sequence of commands for certain operating events. For example, during a DC power failure when the repeater switches to a backup power supply, the repeater can be programmed to switch to low power and send a CW ID advising of the situation, etc.FCC Narrowbanding CompliantMeets the FCC Part 90 requirement for using 12.5 kHz channels by January 1, 2013.Additional Features• 47 CTCSS / 108 DCS Codes Encode and DecodeOptions
• CW ID Transmitter
• CW Message
• Multi-Tone Decode
• Compander Per Channel
• D-Sub 25 Pin Accessory Connector
• Automatic DC Backup Switching Alert
• EIA Rack Mount Size• Voice Inversion Encryption and DTMF Paging
• Rolling Code Encryption

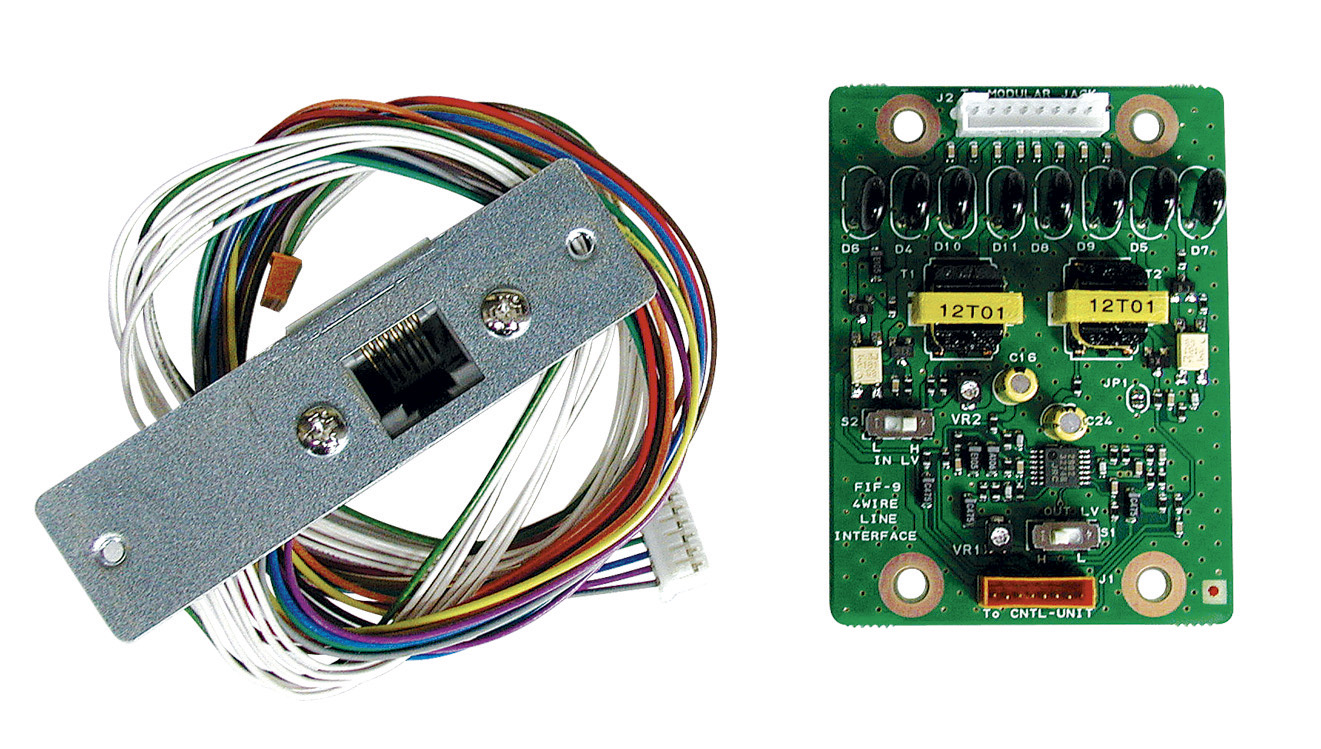

Model Misc. FIF-9
The FIF-9 is an interface unit which allows remote control of the VXR-9000 repeater via a 4-line or 8-line cable.
Power Supply FP-31 POWER SUPPLY
Internal power supply for the VXR-9000 rack mount repeater (50W ONLY - CANNOT BE USED w/ 100W Version).
Programming and Installation CT-104A
Interface Cable for FIF-10A
FIF-10A FIF-10A USB Interface for PC programming. Check specific models for additional cable pigtails. Pigtails not included. INST-OPT Installation Charge. PROG/ADD Factory Radio Programming (Each additional channel after 1st) PROGRAMMING Factory Radio Programming (single channel only) VX VPL-1
Programming cable from PC. Check specific models for additional cable pigtails.
RF Power Amplifiers VPA-9000UD
VPA-9000UD POWER AMPLIFIER Kit, UHF 450-490MHz (FOR 100 WATT OPTION ONLY)
VPA-9000VC POWER AMPLIFIER Kit, VHF 148-174MHz (FOR 100 WATT OPTION ONLY)

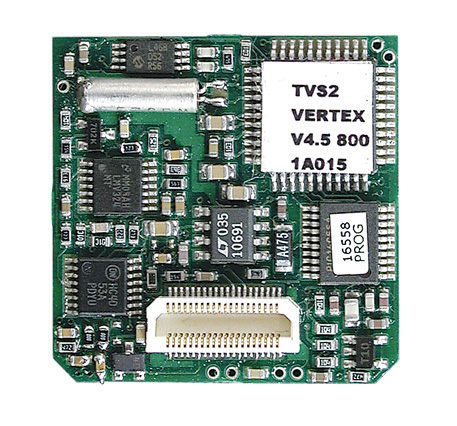

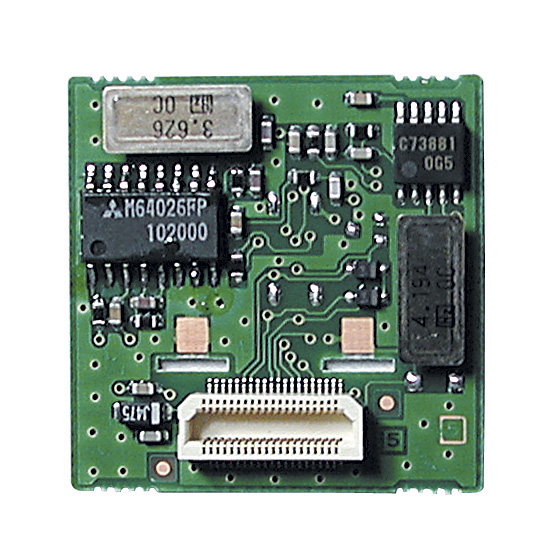

Signaling FVP-25 Encryption Unit (Band Inversion Type) and DTMF Paging. (requires FIF-7 if installed into the VX-4000 / VX-5500 / VX-6000) FVP-35
Plug-in Rolling Code Encryption. Requires FIF-7 if installed into the VX-4000 / VX-5500 / VX-6000. Requires VX MPI for programming
