Best of the Basics Airband Transceiver

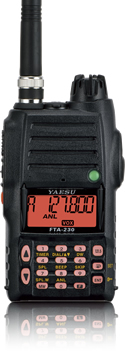

The Yaesu FTA-230 is a compact, stylish, solid and affordable hand-held transceiver providing communication on the International Aircraft Communication Band. Additionally, it provides receive on the Navigation Band.
The FTA-230 boasts 700 mW of clean audio output and it also provides 8.33 kHz synthesizer steps for the new narrow-band channel plan.
The FTA-230 displays information with our exclusive Omni-GlowTM display back-lighting for minimal degradation of your night vision. NOAA weather band monitoring, 8-character Alpha/Numeric Display, 150 Memory Channels, 100 “Book Memory” Channels, VOX, and Side Tone are just some of the many features provided. The channel configurations can be easily reprogrammed in minutes using the optional PC Programming Kit and your PC.
The FTA-230 comes packaged with: BNC Helical Antenna (YHA-73), 110V charger with desktop charging cradle (PA-48B, and CD-32), NiMH battery (FNB-83), headset adapter (CT-96), Alkaline battery tray (FBA-25A), and our exclusive 12V DC charging sleeve (CD-59).
BNC Antenna Connection
Re-engineered with a standardized BNC connection the FTA-230 will now allow a quick easy connection to an external antenna giving the user greater transmit and receive range and clarity.
Exclusive 12VDC charging sleeve
The FTA-230 comes value packaged with the CD-59 charging sleeve. The CD-59 gives the operator the freedom to keep the radio powered on continuosly while it is connected to a 12VDC source. The slim form fitting design allows for easy radio operation.
Improved Channel Recall Flip-Flop feature
The software has been updated with a new advanced channel Flip-Flop feature. The FTA-230 will automatically store up to 10 of the last channels used, and allow quick access to recall those channels with just a few simple steps.
The FTA-230 was engineered for safety and durability. The radio is built around a solid die cast aluminum chassis with heavy duty gasketing throughout, allowing the radio to be submerged up to 3' for 30 minutes (JIS7 waterproofing standard) making this the most durable aviation transciever on the market today.
The FTA-230 can receive all 10 NOAA weather broadcast frequencies. The Automatic Active Weather Channel Locator automatically scans for active NOAA weather stations in your area when WX band is selected. The FTA-230 includes a special feature that sounds an alarm when the special "Severe Weather" alert tone is received from a weather broadcast station. This can warn you of potentially hazardous flying conditions.
Model Antennas | Antenna Adapters YHA-73
Helical BNC antenna for FTA-230 and FTA-310
Battery Packs FNB-83
1400mAh Ni-MH Battery
Battery Trays - Dry Cell FBA-25A
Alkaline Battery Tray
CD-32 CHARGER CRADLE
12VDC Charging Sleeve for FTA-230 and FTA-310
PA-48C 220V Power Supply
PA-48C 220V Power Supply (Replaces the NC-72C)
VAC-370B 110VAC Desktop Rapid Charger VAC-370C 220V Desktop Rapid Charger Chargers - DC | Vehicular E-DC-5B
DC Cable W/Noise Filter
DC Cable; plug and wire only
Headsets | Headset Adapters CT-96
CT-96 Headset Adapter for the VXA-220/300/710 (use P/N Q7000451)
Programming Cables CT-29 PC to adaptor programming cable. Requires CT-97 (adaptor to radio). CT-97 Programming cable adaptor. Requires CT-29. Speaker Microphones MH-44B4B
LT Duty Speaker Microphone for the VXA-220, 300, 710 Models
Aviation \ Brochures
Yaesu 2013 Airband Transceiver Catalog ( 2.46 MB )
Aviation \ Manuals \ Owners Manual
FTA-230 Owners Manual 12-4-2012 ( 1.70 MB )
Aviation \ Product Images
CD-59 Charging Cradle ( 973.51 KB )
FTA-230 with CD-59 ( 476.23 KB )
FTA-230 image front ( 1.43 MB )
YHA-73 Helical BNC Antenna ( 129.06 KB )
Aviation \ Software
VXA-220/FTA-230 Programming Software ( 3.40 MB )
