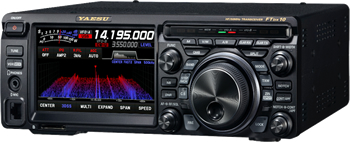

We are pleased to introduce the FTDX10, a new long-awaited compact HF/50MHz 100W SDR Transceiver!
Hybrid SDR Configuration
Like the FTDX101 series, the new FTDX10 utilizes the Yaesu Hybrid SDR configuration - Narrow Band SDR and Direct Sampling SDR. The Narrow band SDR receiver emphasizes excellent receiver performance, while the Direct Sampling SDR provides a Digital Processing Real-Time Spectrum Scope.
Narrow Band SDR with 3 types of Roofing Filters and Phenomenal Multi-signal receiving Characteristics
Like the FTDX101 series, the Down Conversion type receiver configuration with the first IF at 9MHz has been adopted. It makes it possible to incorporate excellent narrow bandwidth crystal roofing filters that have the desired sharp “cliff edge” shape factor. Thanks to the Narrow Band SDR with the latest circuit configuration including 500Hz, 3kHz and 12kHz roofing filters and low-noise oscillator, the RMDR (Reciprocal Mixing Dynamic Range) reaches 116dB or more, the close-in BDR (Blocking Dynamic Range) reaches 141dB or more and 3rd IMDR (third-order Intermodulation Dynamic Range) reaches 109dB or more in the 14MHz band at 2kHz separation.
250MHz HRDDS (High Resolution Direct Digital Synthesizer) affords Quiet and Clear Reception
The local circuit of the new FTDX10 uses 250MHz HRDDS method same as the FTDX101 series. Thanks to its characteristics that improve the C/N (carrier to noise) ratio and the careful selection of components in the design, the phase noise characteristic of the local signal achieves an excellent value of -145dB or less in 14MHz at 2kHz separation.
3DSS (3-Dimensional Spectrum Stream) on the 5-inch Full-Color TFT Display with Touch-Panel Functionality
The 5-inch Full-Color panel shows the 3DSS display. By touching the frequency display, the numeric keypad is displayed, and the active band and frequency adjustment can be set by direct input. Frequency setting and adjustment can also be performed by turning the MAIN dial or touching the scope display. Similar to the FTDX101 series, the MULTI display, RX operation status display, Center, FIX and Cursor modes are available.
Front Panel Designed for Superior Operating Efficiency
MPVD (Multi-Purpose VFO Outer Dial), is a large multi-purpose ring around the outside of the VFO dial that enables control of Clarifier, C/S (custom selection function) and recall of memory channels.
Remote Operation with optional LAN unit (SCU-LAN10)
Remote operation of the transceiver is possible with the optional SCU-LAN10 and SCU-LAN10 Network Remote Control Software. In addition to controlling the transceiver basic operations, the versatile scope displays enable sophisticated operations such as monitoring the band conditions on a large display at a location away from the ham shack by connection to a home LAN network.
The features of the new FTDX10 include:
- 15 separate band pass filters
- Effective QRM rejection with the IF DSP (IF SHIFT/WIDTH, IF NOTCH DNF, DNR, COUNTOUR) High-quality and super stable final amplifier utilizing the new push-pull MOSFET RD70HUP2 Aluminum Heat Sink with 80mm low-noise axial flow cooling fan
- High Speed Automatic Antenna Tuner with a large capacity 100-channel memory
- RF & AF Transmit Monitor
- Microphone Amplifier with Three-stage parametric Equalizer (SSB/ AM mode)
- QMB (Quick Memory Bank)
- Band Stack Function

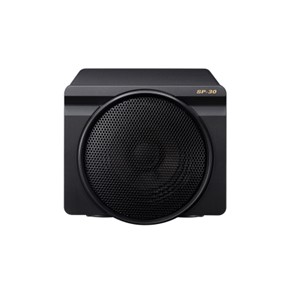

- Optional speaker – SP-30 designed for the new FTDX10
- Optional roofing filter (300Hz) – XF-130CN available
Model Antenna Tuners FC-40
Automatic Antenna Tuner (For Long Wire Antenna)
Active-Tuning Antenna (Automatic Type)
ATAS-25 The ATAS-25 is a manually-tuned portable antenna system ideal for the FT-817, FT-897, and FT-857 transceivers. Capable of operating on the Amateur bands between 7 MHz and 450 MHz, the ATAS-25 is designed for mounting on a standard 1/4" camera tripod stud (tripod not supplied), and includes an innovative fine-tuning system allowing precise SWR adjustment in the field. ATBK-100 Balcony Mount Counterpoise Kit (Base Mount Required) Cables CT-39
Packet Interface Cable

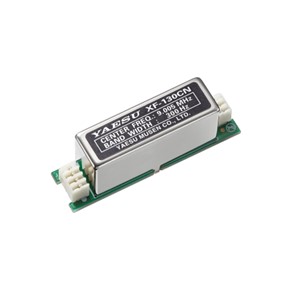

Roofing Filter (9.005MHz/CW300Hz)
Headsets YH-77STA Lightweight Stereo Headset for use with HF transcievers Microphones M-1
Dual Element Microphone
Microphone Stand Kit (microphone stand is not included).

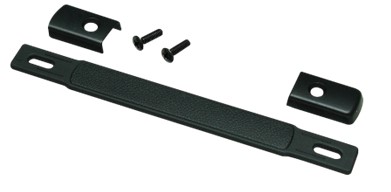

Miscellaneous FH-2 Remote Control Keypad FH-2 Remote Control Keypad SCU-LAN10

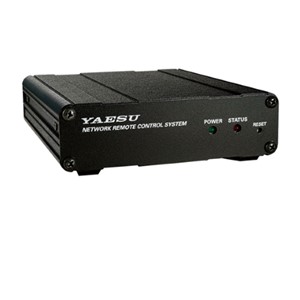

Network Remote Control System
Speakers SP-2000 Speaker
External Speaker with Audio Filters
Desktop External Speaker
Amateur Radio \ Brochures \ HF/Satellite Transceivers and Amps
FTDX10 Catalog ( 15.70 MB )
FTDX10 Deutsch Catalog ( 13.39 MB )
FTDX10 French Catalog ( 13.56 MB )
FTDX10 Front Product Image ( 5.24 MB )
FTDX10 Front R Product Image ( 4.43 MB )
FTDX10 Italian Catalog ( 13.19 MB )
FTDX10 Main XF-130CN plugged-in Image ( 291.80 KB )
FTDX10 Product Review (June 2021 QST - ARRL) ( 2.36 MB )
FTDX10 Spanish Catalog ( 14.22 MB )
FTDX10/SP-30_Front_L Product Image ( 6.29 MB )
Amateur Radio \ Manuals
FTDX10 Operation Manual (2207J-GS) 7-15-22 ( 22.91 MB )
Amateur Radio \ Manuals \ HF/Satellite Transceivers and Amps
FTDX10 About added [PRESET] function ( 576.71 KB )
FTDX10 CAT Operation Reference Book (2204D) ( 736.06 KB )
FTDX10 Deutsch Operating Manual (2101L-BS-1) ( 23.93 MB )
FTDX10 French Operating Manual (2012L-AS-1) ( 23.93 MB )
FTDX10 Italian Operating Manual (2101K-BS-1) ( 23.98 MB )
FTDX10 Spanish Operating Manual (2102S-BS-1) ( 23.91 MB )
M-1 Reference Microphone Operation Manual (2202F-CM-1) ( 2.95 MB )
M-100 Dual-Element Microphone Operation Manual (2101B-FS) ( 1.41 MB )
M-70 Desktop Microphone Instruction Manual ( 340.12 KB )
M-90 MS kit MICROPHONE STAND KIT Operation Manual (2106N-AS) ( 424.21 KB )
M-90D Desktop Microphone Instruction Manual ( 365.19 KB )
Network Remote Control System SCU-LAN10 Installation Manual (2012-B) 12/10/20 ( 3.43 MB )
Network Remote Control System SCU-LAN10 Operation Manual (2012-B) 12/10/20 ( 16.95 MB )
Amateur Radio \ Software
FTDX10 Firmware Update 202204 (4/20/22) ( 3.99 MB )
FTDX10 Firmware Update Information (4/20/22) ( 180.43 KB )
FTDX10 SCU-17 USB Driver Virtual COM Port Driver Installation Manual (2202-E) ( 818.26 KB )
FTDX10 USB Driver Virtual COM Port Driver (Windows 11/10) ( 216.45 KB )
Network Remote Control System SCU-LAN10_Software Update Information (12/10/20) ( 32.71 KB )
Network Remote Control System SCU-LAN10_Software_ Ver2.00 (12/10/20) ( 44.60 MB )
