System Requirements

WIRESTM-II System Requirements

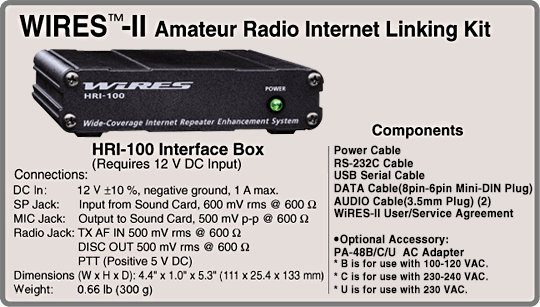

* WIRES-II Kit (HRI-100)
* Transceiver (preferably with standard Packet jack)
Internet Connection
* DSL 8M or faster internet connection.
(dedicated connection preferred, but LAN may be used with the proviso that resetting may be necessary in the event of long periods of inactivity).
* Personal Computer
  • Microsoft® Windows® 2000 / Windows® XP / Windows® VistaTM / Windows® 7
  • Processor Clock Frequency
    Microsoft® Windows® 2000: 400 MHz (or faster)
    Windows® XP: 800 MHz (or faster)
  • Windows® VistaTM : 1.2 GHz (or faster)
    Windows® 7: 1.2 GHz (or faster)
  • 100 MB of available hard disk space
  • RAM
    Microsoft® Windows® 2000: 256 MB (or more)
    Windows® XP: 512 MB (or more)
    Windows® VistaTM : 1 GB (or more)
    Windows® 7: 2 GB (or more)
  • COM PORT (RS-232C)
  • A video card and display with a resolution of 1024 x 768 or more, and a minimum of 256 colors, are recommended.
  • 8 kHz sampling rate Sound Card (note that some sound cards may not work properly)
  • In most cases the Wires program should operate with no problems but some functions of the WiRES-II program may not function correctly depending on variations of the "OS","CPU" and "sound cards".

Access to the WIRES Server is permitted once a Server I.D. number has been received from Yaesu Musen. The Server I.D. number is only assigned after the signed User/Server Agreement, has been received by Yaesu Musen.
