Description Accessories Files

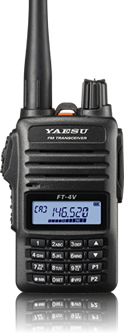

FT-4VR - VHF 2 Meter Mono Band FM Handheld Transceiver
The FT-4VR 2 meter HT has three output power levels: 5, 2.5 or 0.5 watts transmitting from 144 to 148 MHz. Receive coverage is 65-108 (FM broadcast band) and 136-174 MHz. The FT-4VR is compact and light, yet ruggedly constructed. The speaker provides a full 1 Watt of powerful, clear audio. The supplied 1750mAh Li-ion battery pack is capable of up to 15 hours operation (TX 5 seconds, RX 5 seconds, Standby 90 seconds). The SBH-22 3.5-hour rapid charger is included. VOX operation is available with the optional SSM-512B earpiece microphone. Other features include: WX Channels with “Severe Weather” Alert, PC Programming (optional cable), Transceiver-to-Transceiver Cloning (optional cable), Keypad Entry, FM Broadcast Receiver, Automatic Range Transponder System (ARTS), CTCSS/DCS Operation, Busy Channel Lockout (BLCO), Automatic Power Off feature and Transmitter Time Out Timer (TOT). The new FT-4VR meets demanding commercial grade specifications. Size: 2.1 x 3.5 x 1.2 inches (less knobs and antenna) 8.82 oz.
Commercial Grade VHFThe FT-4VR is built to commercial grade standards, including the IP54 Rating for Dust and Water protection, and the MIL-810-C,D and E standards making this radio suitable for operation in the harshest of environments.Powerful OutputsWith 5 Watts of reliable RF output power this radio is sure to be heard. Never miss a call with One watt of Crisp, Clear Audio output from the oversized front panel speaker.High Capacity Li-Ion BatteryPackaged with a powerful 1750 mAh Li-Ion battery pack, giving the radio over 9 hours of operating time. To ensure minimal down time the FT-4VR also comes packaged with a 3.5-Hour Rapid charger.Versatile Scanning CapabilitiesProgrammable VFO Scan scans all channels in the desired frequency range, Memory scan allows scanning of user selectable frequencies, Priority Channel Scan can be used to scan memory channels while making one channel a priority. Weather Alert scan alerts the user when severe weather is approaching.PC ProgrammableThe FT-4VR is capable of being programmed directly from a PC making all of the advanced setup features a breeze using the optional software and SCU-35 programming cable.More Advanced FeaturesTons of advanced features are loaded into this compact radio including: Transceiver to Transceiver cloning with the optional SCU-36 clone cable, FM Band receiver equipped, ARTS (Automatic Range Transponder System), DTMF operation, CTCSS/DCS operation, TOT (time out timer) and more.
Model Antennas SRA-16N
SAD-20B 110V Charging Cable
VOX Earpiece Microphone
Amateur Radio \ Amateur Product Images.
FT-4VR Front Image ( 1.45 MB )
FT-4VR Side Image ( 1.47 MB )
Amateur Radio \ Manuals \ VHF/UHF Handhelds.
FT-4VE French Advance Manual ( 3.77 MB )
FT-4VE Deutsch Advance Manual ( 3.78 MB )
FT-4VE Italiano Advance Manual ( 3.75 MB )
FT-4VE Spanish Advance Manual ( 3.78 MB )
FT-4VE French Operating Manual ( 8.21 MB )
FT-4VE Deutsch Operating Manual ( 8.21 MB )
FT-4VE Italiano Operating Manual ( 8.22 MB )
FT-4VE Spanish Operating Manual ( 8.21 MB )
FT-4VR/VE Advance Manual ( 3.94 MB )
FT-4VR/VE Operating Manual ( 8.16 MB )
Amateur Radio \ Software.
FT-4VR/FT-4VE Memory Programmer (USA, EXP and EU) ( 16.64 MB )
