Multi-Mode Mobile HF Radio
- 200 Channels
- 125 Watts / 100 Watts (A1A, J2B, J3E)
- 31 Watts / 25 Watts AM Carrier (A3E)
- RX: 30 kHz – 30.0000 MHz / TX: 1.600 – 30.0000 MHz
- 4 Programmable Keys
Multi-Mode CapabilityDesigned to operate as mobile radio or as a base station for long-haul land mobile communications. With operating modes: LSB/USB (J3E and J2B); AM (A3E) and CW (A1A) the VX-1700 is ideal for a wide variety of applications.Flexible Calling OptionsProvides six different built-in calling modes to support various communications requirements including SELCALL, TELCALL, Message Call (for text messages), Position Request Call, Position Send Call and Beacon Request Call to check signal qualityDual Watch OperationOperate on one channel while periodically monitoring the designated memory channel to ensure a call is not missed. Ideal for emergency management situations when it is important that a call gets through to dispatch.Automatic Link Establishment (ALE) OptionWith the ALE-1 option installed, the VX-1700 ALE feature automatically selects the channel with the best LQA (Link Quality Analysis) score from the programmed channels.Additional Features• 6-Character Alphanumeric Channel LabelOptions
• Noise Blanker
• CW Semi Break-In
• CW Side Tone Function
• VOX• Variable Split-Band Voice Scrambler
• Automatic Link Establishment
Model Antennas YA-007FG YA-007FG HF Mobile Antenna YA-30 Broadband T2FD Dipole Base Station Antenna HF Antenna Tuners FC-30 Automatic Antenna Tuner (For coaxial lines) FC-40
The FC-40 is a new, wide-range Antenna Coupler for the FT-450, FT-857, and FT-897 Series of Transceivers.
The FC-40 is a microprocessor-controlled antenna impedance matching network designed for use with all versions (original and “D”) of the FT-450, FT-857, and FT-897 HF/VHF/UHF Transceivers. The FC-40 makes use of control circuitry inside the transceiver, allowing the operator to monitor and control operation of the FC-40, which mounts near the antenna feedpoint. Fully waterproof, the FC-40 may be mounted outdoors in exposed locations, and will handle a 100 Watts of transmitter power.
The FC-40 is designed for operation on 7 ~ 54 MHz, when using an 8’ whip like the YAESU YA-007, or on 1.8 ~ 54 MHz when used with a random-length wire longer than 66’. Matching time is typically five seconds or less, and the required drive power is 4 ~ 60 Watts. The FC-40 sports a whopping 200 match-setting-point memories, for instant recall of the tuning settings.

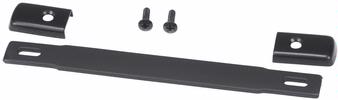

Microphone MD-200A8X Desktop Microphone MH-31A8J Hand Microphone Mounting Bracket MHG-1 CARRYING HANDLE MHG-1 CARRYING HANDLE MMB-89 One-Touch Mobile Bracket Power Supply FP-1030A 30A Power Supply 110V Programming and Installation CK-11 CK-11 CT-62 CT-62PC programming cable INST-OPT Installation Charge. Signaling ALE-1
Automatic Link Establishment Unit
Speaker MLS-100 External Speaker (12 Watt Peak) MLS-200
15 W peak external weatherproof speaker.
